Trapezoid Metal Roof Hooks



Product Overview



Grace Solar Trapezoid Metal Roof Hooks are engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system. The various roof hooks can be high pre-assembly and make the installation easy and quick to save your labor cost and time.





Technical Parameters

Technical Information
Install site :Pitched Roof
Tilt Angle :Flushed with the roof ,up to 60 deg
Building Height:20 m
Max Wind Speed:<60m/s
Snow Load:<1.4KN/m2
Standard :AS/NZS 1170 and other international Standard
Material :High Class Aluminum alloy Al6005-T5& Stainless steel 304
Color: Natural or Customized
Anticorrosive: anodized aluminum & stainless steel
Warranty:Ten years warranty and twenty years service life

Ballasted Solar Mounting System II

Product Overview

Grace Solar Ballasted mounting System II is a grace highly engineered solution that secures the array without damaging the flat roof. It is compatible with the usual framed photovoltaic modules and typically does not require roof penetrations. Made from lightweight and strong aluminum construction, the Grace solar ballasted solution will arrive pre-assembly and pre-cut to prevent corrosion and save your labor cost and installation time.



Technical Parameters

Install site :Low profile roof or open field
Tilt Angle :10deg, 15deg, 20deg,
Module Orientation: Landscape
Building Height:up to 20 m
Max Wind Speed:up to 60m/s
Snow Load:<1.4KN/m2
Distributed weight: 10~25 kg/m2
Standard :AS/NZS 1170 &DIN 1055 & Other
Material :High Class Aluminum alloy Al6005-T5&

                    Stainless steel fasten
Color: Natural
Warranty:Ten years warranty and

                     twenty years service life .

NT&KNT Tilt Solar Racking System



Product Overview

GS NT&KNT Tri-angle Racking System are our best designed to mount on the roof or ground on the certain angle. it is lighter,

stronger and more flexibility. One tool can install the all components. it can be folded package and compatible with the other

GS product. Grace Solar , your best choice.





Technical Parameters

Install site :Low profile Roof or flat roof
Tilt Angle :10~60 deg
Building Height:up to 20 m
Max Wind Speed:up to 60m/s
Snow Load:<1.4KN/m2
Standard :AS/NZS 1170 & DIN 1055 & Other

Material : Aluminum alloy & Stainless steel
Anticorrosive: Anodized aluminum & stainless steel
Color: Natural
Warranty:Ten years warranty and twenty years service life

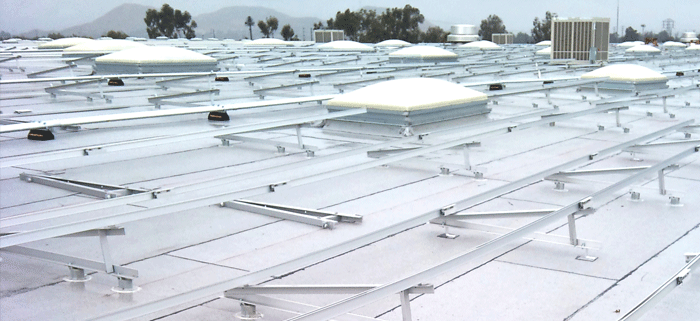

Fixed Tilt Solar Racking System

Product Overview

Grace solar Fixed Tilt Solar Racking System is applicable to install the usual framed module to tilt a certain angle with the roof. The solar system can be a fixed angle or adjustable such as 10~15 deg, 15~30 deg and 30~60 deg for your requirement. The special extruded aluminum rail, the tilt-in module, the clamp kit and the round leg can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.



Technical Parameters

Install site :Low profile Roof or flat roof
Tilt Angle :10~60 deg
Building Height:20 m
Max Wind Speed:<60m/s
Snow Load:<1.4KN/m2
Standard :AS/NZS 1170 and other international Standard
Material :High Class Aluminum alloy Al6005-T5& Stainless steel 304
Anticorrosive: Anodized aluminum & stainless steel
Color: Natural and Customized
Warranty:Ten years warranty and twenty years service life

Pitched Roof Solar Racking System

Product Overview

GS Pitched Roof Racking System designs with great flexibility both for commercial and residential roof solar system. it is suitable for installing framed and frameless modules flushed to the pitched roof. GS series product have the innovated design of GD Rail and D module make the installation more easily and quickly. High pre-assembly parts and customized solution to save your install time and money. Grace Solar have the excellent engineer team and quality management system to provide the perfect service. Grace Solar, your best choice.

Technical Parameters

Technical Information
Install site :Pitched Roof
Tilt Angle :Flushed with the roof (10~60 deg)
Building Height:20 m
Max Wind Speed:<60m/s
Snow Load:<1.4KN/m2
Standard :AS/NZS 1170 and other international Standard
Material :High Class Aluminum alloy

                    Al6005-T5& Stainless steel 304
Color: Natural or Customized
Anticorrosive: anodized aluminum & stainless steel
Warranty:Ten years warranty and twenty years service life
